Anchor diameter
M6-M24 typical.
Back to Construction & Steel Structures
Construction & Steel Structures
Wedge Anchors
Expansion anchors for securing steelwork and equipment to concrete substrates.
Send inquiryProduct details

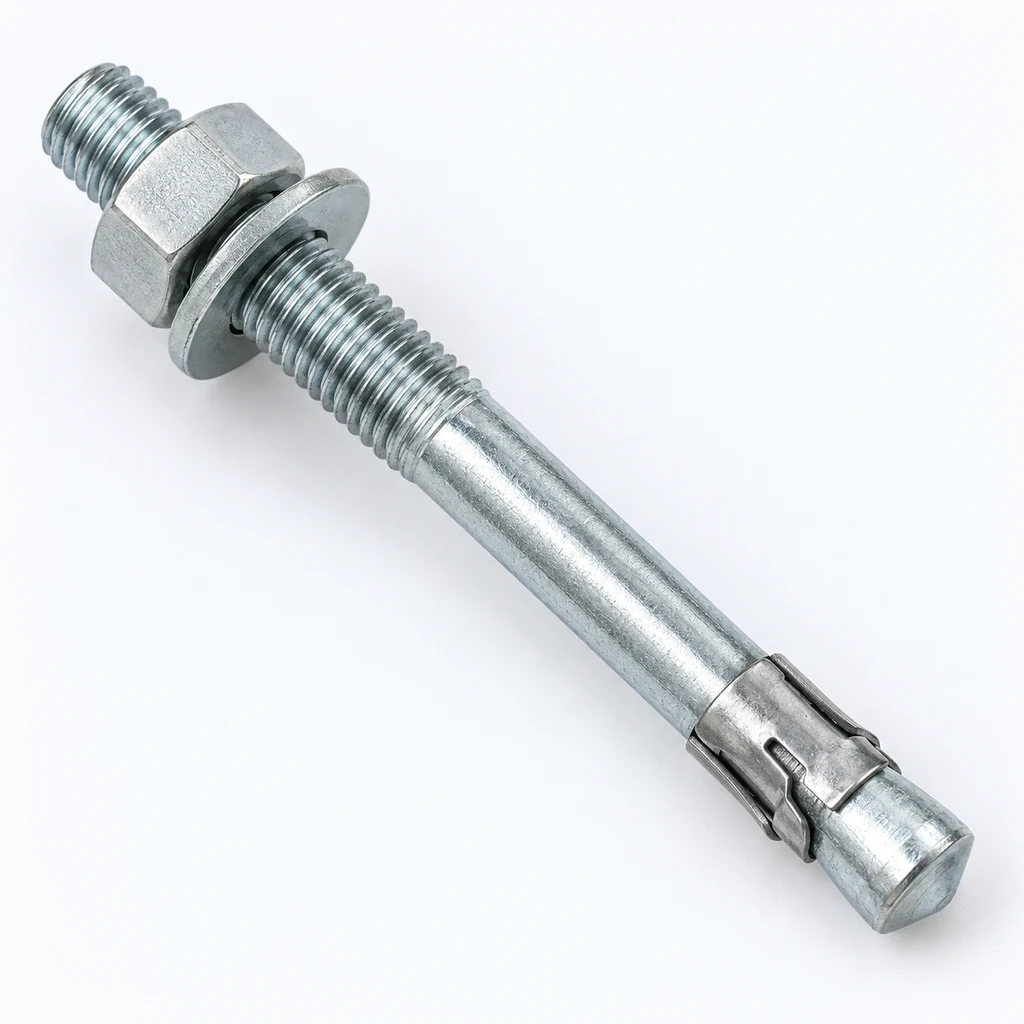

A closer look at the product.
Open the image for a closer view. Product appearance is shown for reference; confirm the final dimensions, material and finish with your quotation.
Enlarge imageProduct overview
Designed around the assembly.
Wedge anchors use an expansion clip to develop holding capacity in suitable concrete. Final selection depends on base material, embedment and load design.
Send drawing for confirmationOverall length
50-300 mm typical.
Embedment
Specified by the approved anchor design and concrete condition.
Load data
Confirmed against the applicable approval and installation condition.
Quotation requirements
Material and approval details.
Share the component quantity, material, finish, assembly environment and any relevant drawing so we can confirm the correct configuration.
Materials
- Carbon steel
- Stainless steel 304
- Stainless steel 316
Finish options
- Zinc plated
- Hot dip galvanized
- Plain stainless, passivated
Common standards
- Project anchor specification
- ETA or local approval where required
- Customer drawing
Applications
- Steel base plates
- Racking systems
- Building services supports
