Frame thickness
Matched to the module frame and rail interface.
Back to Solar Mounting Systems
Solar Mounting Systems
Solar Grounding Clips
Stamped conductive clips for module-frame and rail bonding in photovoltaic structures.
Send inquiryProduct details

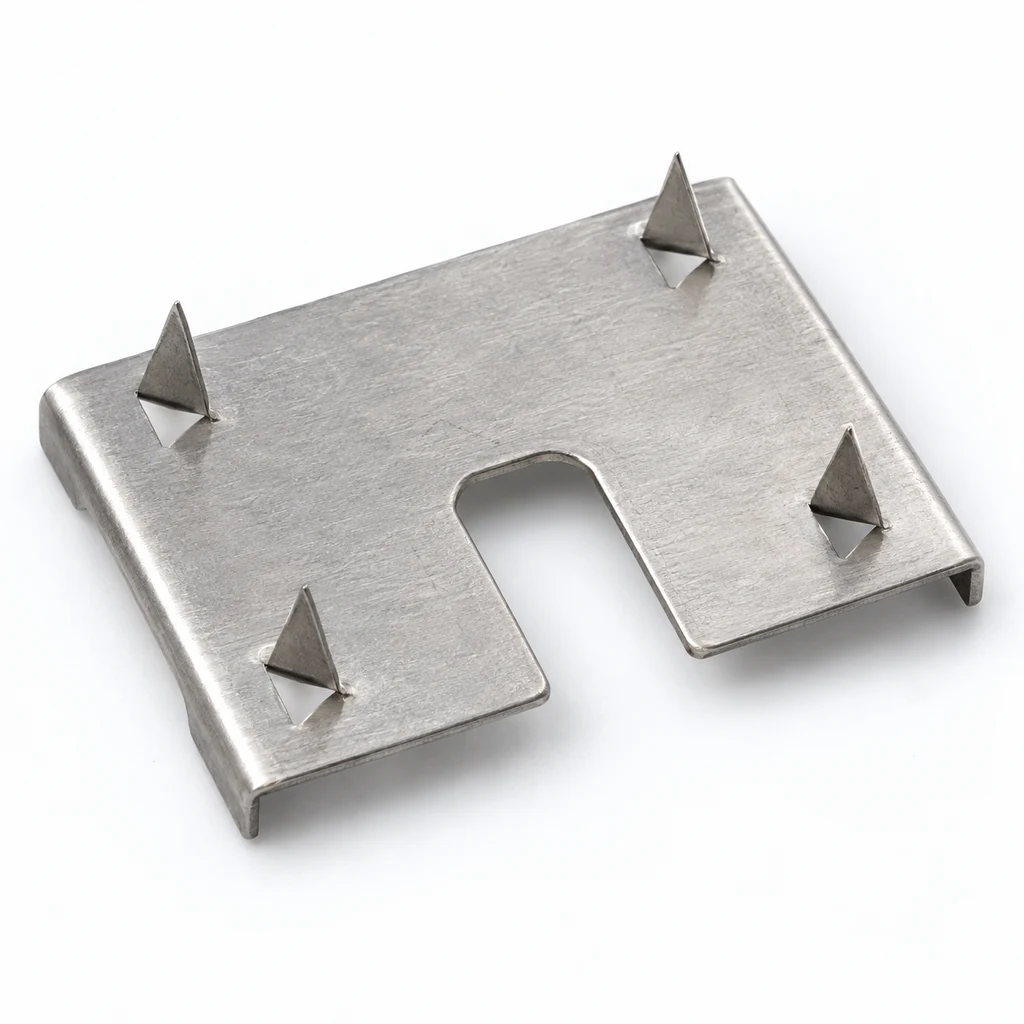

A closer look at the product.
Open the image for a closer view. Product appearance is shown for reference; confirm the final dimensions, material and finish with your quotation.
Enlarge imageProduct overview
Designed around the assembly.
Solar grounding clips are formed to suit the module frame and mounting rail interface, helping establish a reliable bonding connection during installation.
Send drawing for confirmationClip geometry
Stamped profile is confirmed against the approved assembly drawing.
Fastener interface
Commonly paired with M6 or M8 mounting hardware.
Requirement review
Final dimensions, tolerances and coating are confirmed against the approved drawing and application requirements.
Quotation requirements
Material and approval details.
Share the component quantity, material, finish, assembly environment and any relevant drawing so we can confirm the correct configuration.
Materials
- Stainless steel 304
- Stainless steel 316
- Conductive stainless grade to requirement
Finish options
- Plain stainless
- Passivated stainless
- Project-specified conductive finish
Common standards
- Module-frame matched geometry
- Project drawing
- Assembly validation requirement
Applications
- PV module bonding
- Rooftop solar arrays
- Ground-mount solar structures
